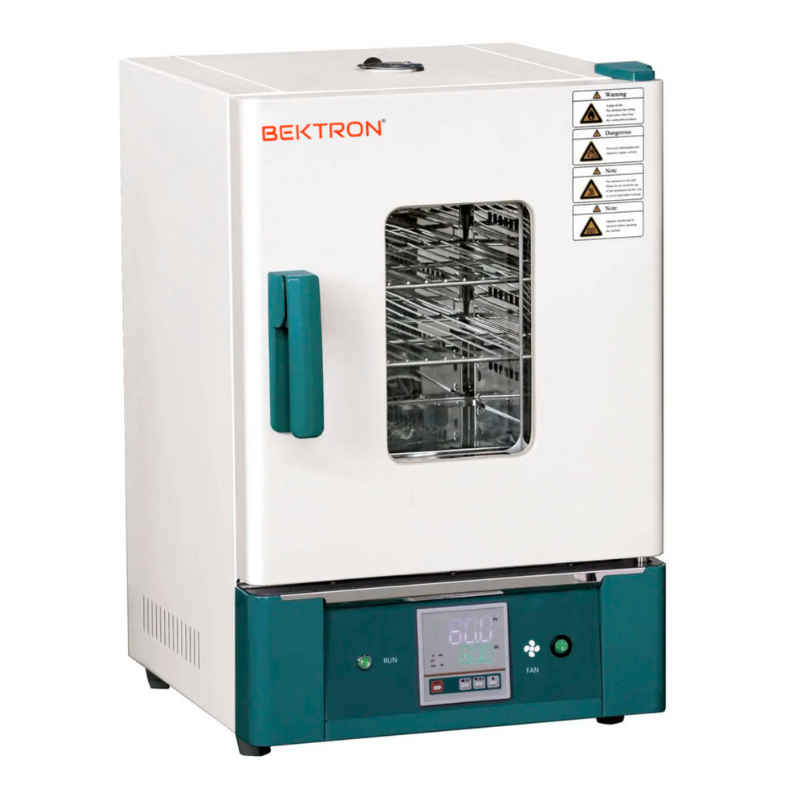

Forced Air Drying Oven

SKU: N/A Categories: ,

Uses:

This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.

Characteristics

1. Vertical type, cold rolling steel electrostatic spraying exterior.

2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.

3. High quality mirror finished stainless steel interion foursquare semicircle transition; flexible positioning and removable shelf; airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.

4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.

5. Use the low noise fans.

5. Hew design door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.

Compare
StumbleUponEmail
Description

Uses:

This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.

Characteristics

1. Vertical type, cold rolling steel electrostatic spraying exterior.

2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.

3. High quality mirror finished stainless steel interion foursquare semicircle transition; flexible positioning and removable shelf; airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.

4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.

5. Use the low noise fans.

5. Hew design door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.

Main parameters:

 Model BKE-30L BKE-45L BKE-65L BKE-125L BKE-230L BKE-625L
voltage              220V50Hz 380V/50Hz
Tem. Range (°C) RT+5~300°C
Tem. Motion (°C) ±1.0°C
Tem. Resolution Ratio 0.1°C
Ambient tem. (°C) 5-40°C
Heating power (kw) 0.8 1.2 1.6 2.3 3 5
Inner Champer Size (mm) 310×310×310 350×350×350 400×360×450 500×450×550 600×500×750 660×760×1250
Exterior Size (mm) 450×490×685 490×530×730 540×540×830 640×630×930 730×670×1220 890×880×1820
Packing Size (mm) 545×520×750 590×560×790 610×610×890 710×700×990 900×800×1300 1060×1080×1970
Load per rack (Kg) 15kg 2pcs 25kg 2pcs 25kg 3pcs
N.W.(Kg) 33 37 44 60 94 90
G.W.(Kg) 37 43 49 66 120 160
Timing range 1-9999min



 Model BKE-85L
voltage 220V50Hz
Tem. Range (°C) RT+5~300°C
Tem. Motion (°C) ±1.0°C
Tem. Resolution Ratio 0.1°C
Ambient tem. (°C) 5-40°C
Heating power (kw) 2.0
Inner Champer Size (mm) 450*420
*450
Exterior Size (mm) 590*610
*830
Packing Size (mm) 690*695
*985
Load per rack (Kg) 15kg
N.W.(Kg) 50
G.W.(Kg) 56
Timing range 1-9999min
