FUME-HOOD-BKS-3000

Fume Hood

SKU: BKS Categories: ,

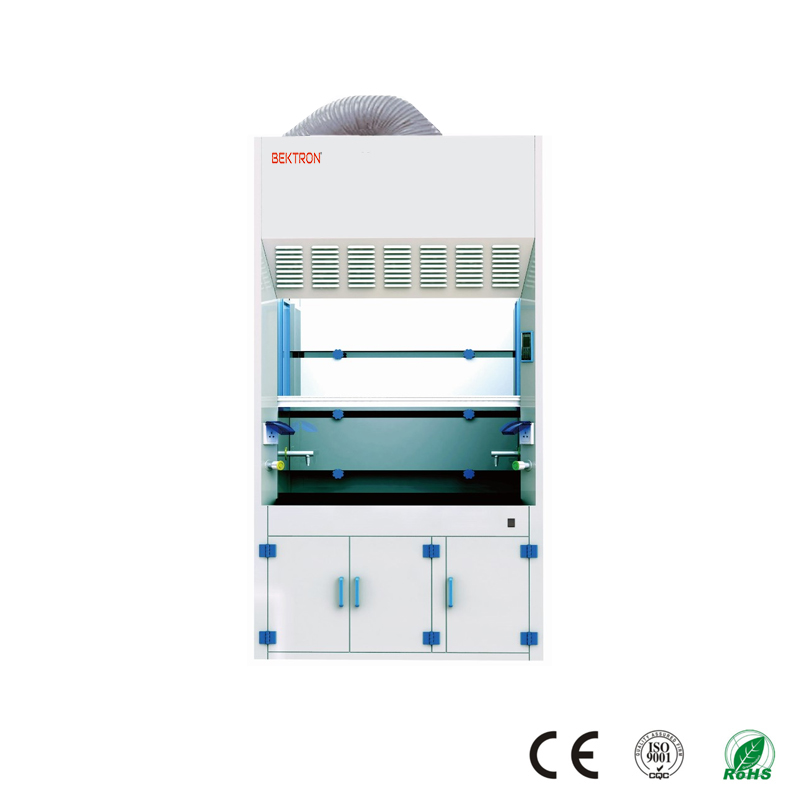

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

Compare
StumbleUponEmail
Description

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

Advantage

1.It is safer to use anti-corrosive water tap.

2.Microprocessor control system, LED display

3.With memory function in case of power-failure

4.Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.

5.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.



Model BKS-1500 BKS-3000 BKS-4500 BKS-9000
External Size (W*D*H) 1040*750*2450mm 1240*800*2450mm 1540*800*2450mm 1840*800*2450 mm
Internal Size (W*D*H) 820*520*700mm 980*570*700mm 1280*570*700mm 1580*570*700 mm
Work Surface Height 820mm
Max Opening 740mm
Air Velocity 0.3~0.8m/s
Noise ≤68dB
Illuminating Lamp LED lamp
12W*1 30W*1 30W*2 36W*2
Blower Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable
Front Window Resitant to acid and alkali, Manual, 5mm toughened glass, height adjustable.
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption 330W 360W 360W 360W
Material Main Body Made of  Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion
Work Table Chemical resistant phenolic resin
Standard Accessory Illuminating Lamp , Water tap, Gas tap, Water Sink, Base cabinet
Waterproof  socket*2,PP centrifugal blower,pipe strap*2(4 Pcs for FH1800(P) only)
4 meters PVC duct (2 Pcs of 4 meters PVC dust for FH1800(P) only), Diameter:250mm
Optional Accessory PP work table, epoxy resin board or ceramic board.
Outer PVC centrifugal blower(only need to select when the duct more than 4m)
Gross Weight 160kg 198kg 225kg 259kg
Package Size
(W*D*H)
Main Body 1190*890*1620mm 1390*940*1620mm 1690*940*1620mm 1990*940*1620mm
Base Cabinet 1190*890*1040mm 1390*940*1040mm 1690*940*1040mm 1990*940*1040mm
